Traction weight: 3000kg
Battery capacity: 24V210AH
Traction type: two wheel drive vehicle
Charging voltage: 230V British standard
CURTIS brand control system
Hydraulic rotary gear lever
Electronic steering pedal protection arm
Multiple sets of universal bearing wheels
Advantage:
Safety:

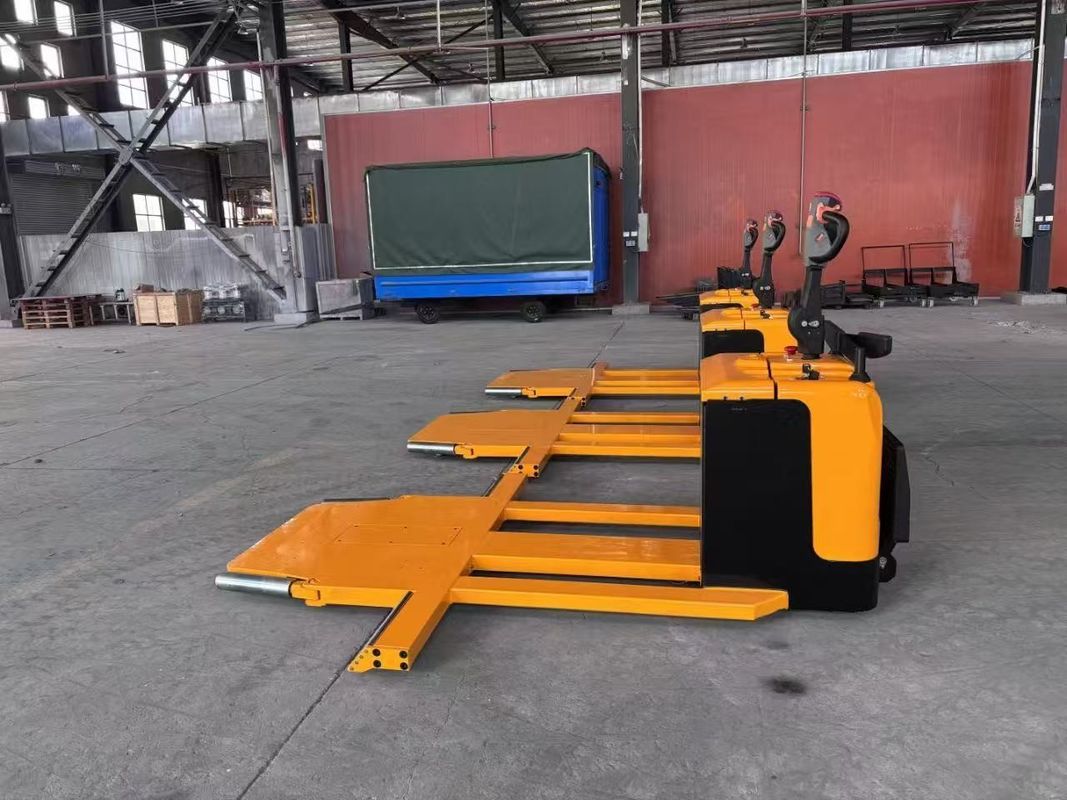

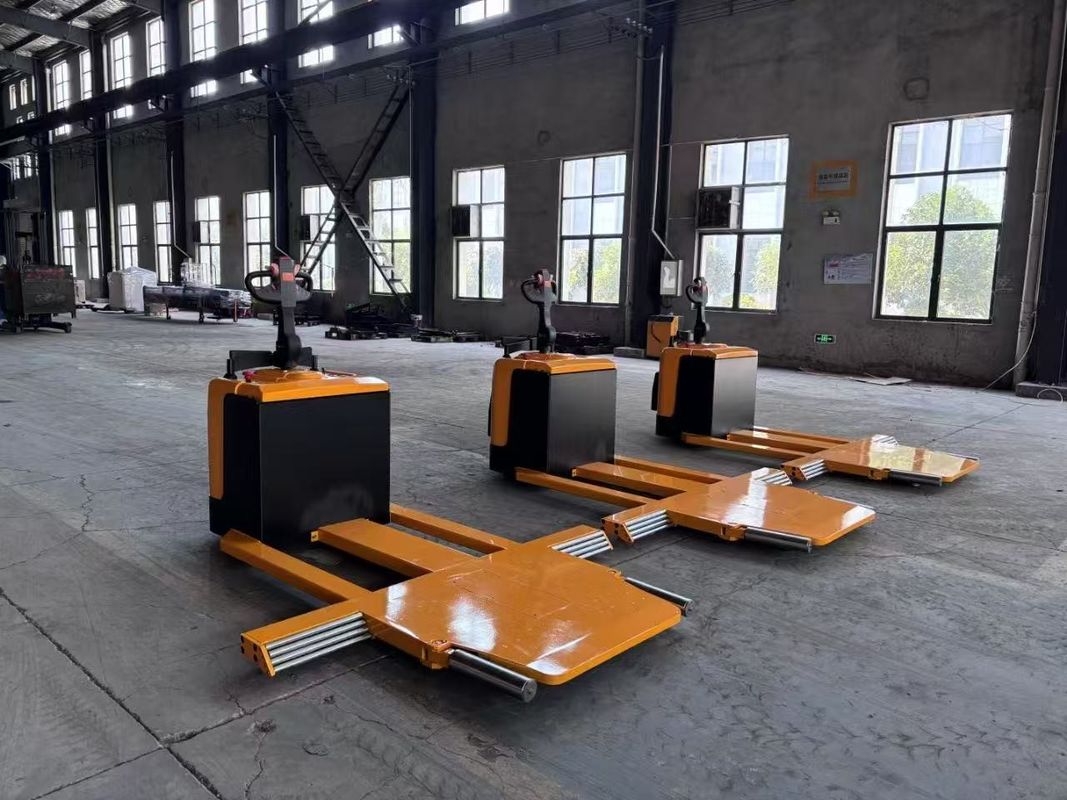

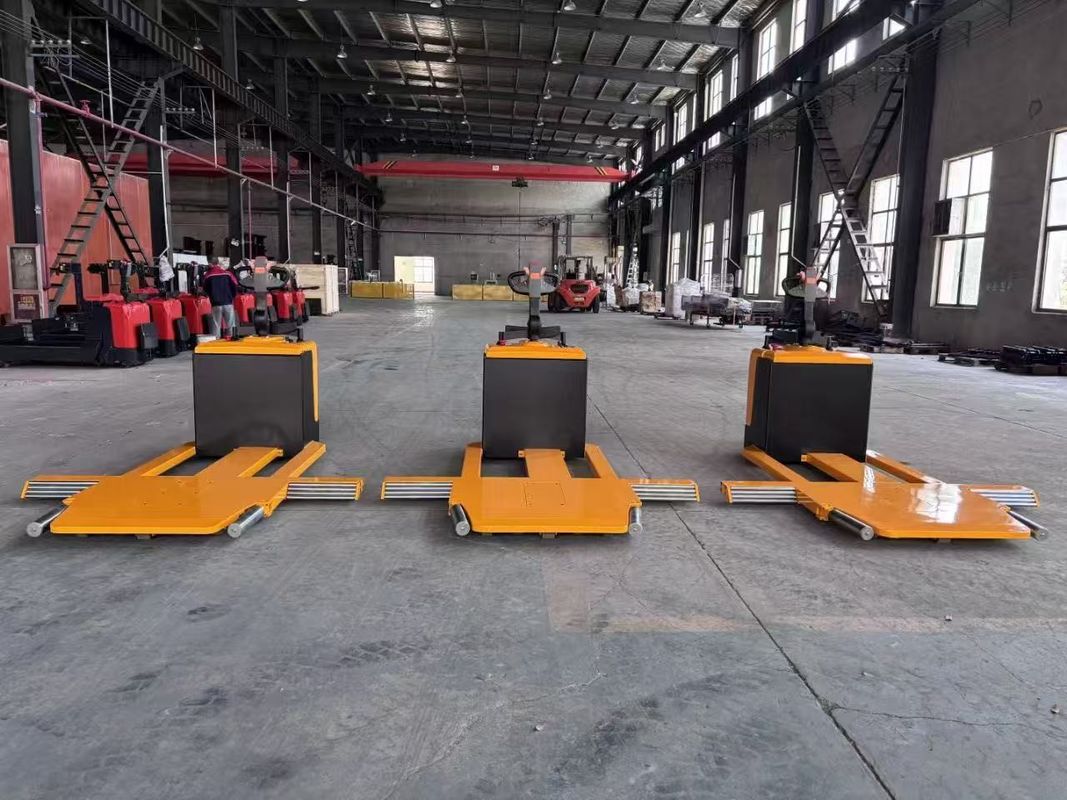

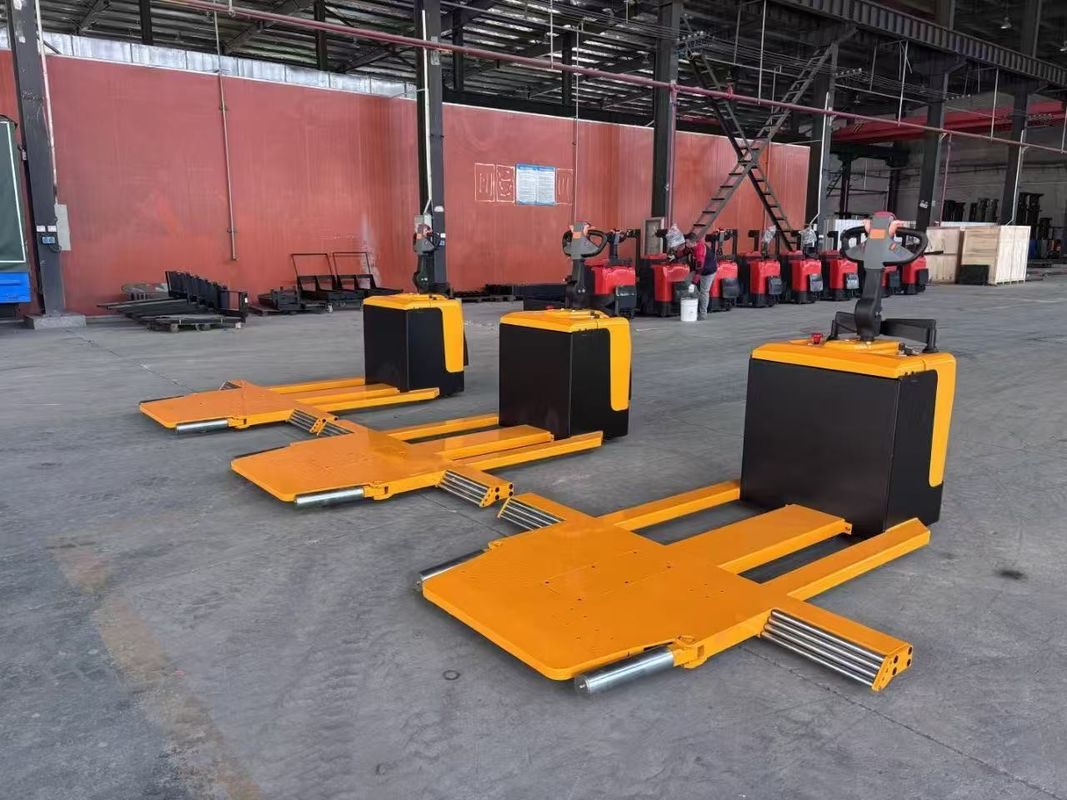

| Name | Car transfer pallet truck (24V) | |
| Operation type | Stand-on type | |
| Model | CBD200 | |
| Traction weight | kg | 20000 |
| Tire configuration | Polyurethane solid tire | |
| Minimum ground clearance of fork | mm | 20 |
| Gear lever rotation angle | ° | 90 |
| Overall length (incl. fork pedal stowed) | mm | 2660 |
| Overall width | mm | 1885 |
| Turning radius (outer pedal retracted) | mm | 2495 (directional wheel) |
| Maximum driving speed | km/h | 4/5 |
| Gradeability | % | 2-3 |
| Total weight | kg | ~950 |
| Drive wheel | mm | Ø230*75 |
| front wheel | mm | Ø76*52 |
| Directional wheel | mm | Ø85*70 |
| Balance wheel | mm | Φ 130*55 |
| Battery capacity | v/ah | 48V500AH |
| Charger | v/a | 24/30 |
| Drive motor | kw | 1.6 |
| Lifting motor | kw | 2.2 |
| Brake | Electromagnetic type | |
| Drive control type | AC | |
| Travel speed regulation mode | Hall accelerator | |
| Steering system | Electronic steering |
